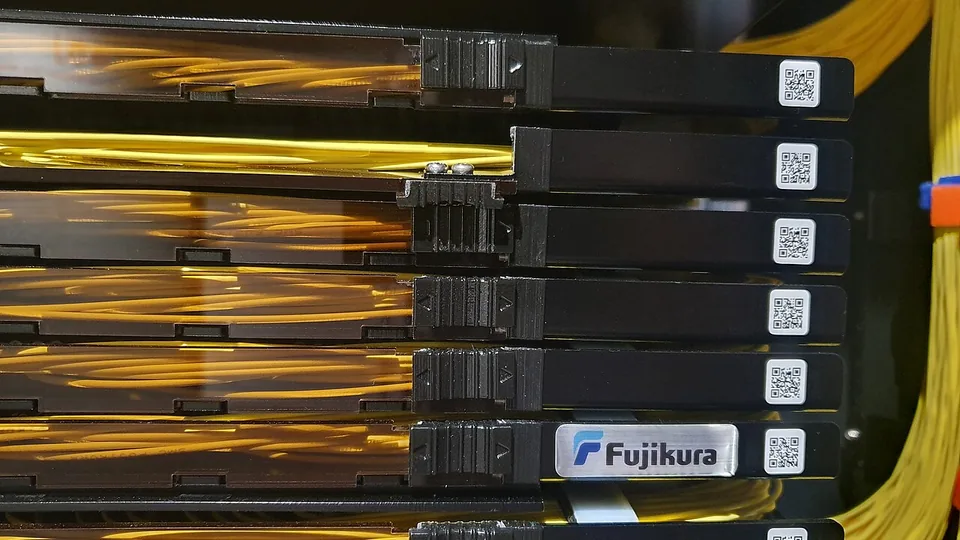

The Speed of Light: How Silicon Photonics and Co-Packaged Optics (CPO) are Replacing Copper in 800G and 1.6T AI Datacenter Fabrics

In the architectural battle to scale mega-datacenter clusters connecting over 100,000 graphics processing units (GPUs) into unified artificial intelligence supercomputing engines, the physical limits of traditional electrical copper wiring have finally been reached.

At astronomical data signaling speeds of 112 Gbps and 224 Gbps PAM4 per lane, high-frequency electrical signals traveling across printed circuit board (PCB) copper traces suffer from severe dielectric attenuation, electromagnetic interference, and immense thermal power dissipation, requiring power-hungry DSP retimers that consume up to 30% of an entire 51.2 Tbps switch’s electrical budget.

To shatter this "Copper Wall," optical networking giants and semiconductor foundries are operationalizing Co-Packaged Optics (CPO) and Silicon Photonics (SiPh)—integrating micro-scale optical laser transceivers and silicon waveguides directly onto the same organic substrate alongside the primary network switch ASIC.

By replacing electrical PCB traces with direct fiber-optic light pipelines, CPO architectures achieve a 30% reduction in switch power consumption, a 50% decrease in network transit latency, and a four-fold increase in datacenter bandwidth density.

---

1. Physical Architecture: Bridging Silicon and Light

Co-Packaged Optics eliminates the long, lossy electrical trace between the central switch chip and front-panel pluggable transceivers:

graph TD
    A["51.2 Tbps / 102.4 Tbps Core Switch ASIC Die (Advanced Packaging Substrate)"] --> B["Ultra-Short Electrical Interface (<15 mm PCB Trace)"]

    B --> C["Co-Packaged Optical Engine (O-Band Silicon Photonics Chiplet)"]

    C --> D["Micro-Ring Modulators (MRMs) Convert High-Speed Electrical Bits to Laser Light Pulses"]

    D --> E["Single-Mode Fiber Ribbon Cable Directly Plugs into CPO Substrate"]

    E --> F["Transmits 800 Gbps / 1.6 Tbps Data Across Kilometers at the Speed of Light with Zero Copper Signal Loss"]

Key Nanophotonic Engineering Breakthroughs:

1. Silicon Micro-Ring Modulators (MRMs): Replacing bulky Mach-Zehnder interferometers with ultra-compact (<10 µ m) silicon micro-ring resonators that modulate continuous-wave laser light with sub-picojoule per bit energy efficiency (<1.5 pJ/bit).
2. External Laser Source (ELS) Architecture: Placing the high-power continuous-wave Distributed Feedback (DFB) laser modules in field-replaceable front-panel cages away from the hot switch ASIC, protecting the lasers from thermal degradation and ensuring 100% field serviceability.
3. Automated Sub-Micron Optical Fiber Alignment: Utilizing high-precision machine vision robotic pick-and-place systems to bond 64-channel single-mode fiber arrays directly to on-chip grating couplers with sub-0.2 micron alignment tolerances.

---

2. Technical Comparison: Pluggable Copper vs. Co-Packaged Optics (CPO)

The operational efficiencies of optical co-packaging fundamentally transform datacenter economics:

Datacenter Interconnect Parameter	Traditional Pluggable Optical Transceivers	Co-Packaged Optics (CPO) Silicon Photonics	Engineering Advantage
Electrical Trace Length on PCB	250 to 350 mm (High Resistance Loss)	<15 mm (Ultra-Short Low-Loss Link)	>90% Reduction in Trace Signal Loss.
Switch Power Consumption	sim 28 to 32 Watts per 800G Port	<14 Watts per 800G Port	50% Power Savings per Port.
Thermal Dissipation Burden	Massive hotspot concentration at front panel	Distributed Low-Power Substrate Cooling	Dramatically simplifies datacenter liquid cooling.
Switch Bandwidth Density	51.2 Tbps Max in 2RU Chassis	>102.4 Tbps in Compact 1RU Chassis	2× Higher Datacenter Rack Density.
Bit Error Rate (BER)	Higher (Requires Heavy Forward Error Correction)	Near-Zero Flawless Optical Transmission	Lower latency without FEC overhead.

---

3. The Multi-Tier AI Cluster Interconnect Hierarchy

In massive AI training superclusters, CPO enables seamless multi-tier networking topologies:

• All-to-All GPU Collective Communications: Accelerating AllReduce and AllToAll tensor parallelism operations across thousands of distributed GPU nodes without network congestion bottlenecks.
• Optical Circuit Switching (OCS): Deploying MEMS-based dynamic optical circuit switches that reconfigure fiber paths in milliseconds, dynamically routing optical bandwidth directly to active training jobs without electronic packet buffer queuing.

---

4. Conclusion: Computing at the Speed of Light

The arrival of Co-Packaged Optics and silicon photonics is the defining turning point in the history of high-performance computing networks.

As the insatiable computational demands of artificial intelligence push electrical systems past their physical limits, the integration of silicon and light ensures that the data highways of the modern world remain unconstrained—connecting millions of processors at the speed of light into the greatest computing machines ever conceived by humanity.
